Recessed Waterproof TV for Bathroom Projects: A Contractor's Guide
If you are managing a luxury hotel fit-out, a high-end residential development, or a commercial wellness facility, selecting the right waterproof TV in the bathroom is a procurement decision that directly affects guest satisfaction, property value, and long-term maintenance costs. This guide walks you through the technical standards, installation process, product selection criteria, and procurement strategy you need to specify, install, and maintain recessed Bathroom TVs with confidence across large-scale B2B projects.
Understanding Waterproof TVs for Bathroom Use
What Makes a TV Truly Waterproof?
Standard consumer screens break down quickly in bathrooms because the covers let steam and condensation get to the circuit boards inside. Bathroom displays are custom-made with sealed housings, toughened glass that won't explode, and powder-coated or stainless steel back panels that keep water out at every joint. The internal PCB gets an extra conformal coating to protect it from oxidation. This is very important for hotel projects near the coast or in places with a lot of humidity.
IP Ratings: The Standard Contractors Must Specify
According to IEC 60529, IP (Ingress Protection) scores are the main standard for wet-zone screens. For a waterproof smart mirror, IP ratings determine its ability to withstand moisture and water exposure. IP65 protects against low-pressure water jets, IP66 protects against strong water jets coming from any direction, and IP67 allows the device to be submerged for a short time up to one meter. The industry standard is to define a minimum of IP66 for recessed shower setups in five-star hotels or business spas. The housings of WiseMirror Intelligent's hidden units are IP66-certified and meet the approval needs of the European and American markets for CE, RoHS, UL, and FCC.
Anti-Fog Technology and Display Brightness
Not including haze in the specifications is a common mistake made in hotel projects. Professional-grade units have a heating plate built in behind the glass panel. This plate turns on when the power is turned on and keeps the surface of the glass slightly above the dew point of the air. This gets rid of condensation in two to three minutes. The brightness of the display is also very important. For panels to be clearly visible during the day, bathrooms with recessed lighting and tile floors that reflect light need to be rated at 350 to 500 nits.
Recessed Waterproof TV Installation: A Step-by-Step Guide
Site Assessment and Wall Cavity Preparation
Before buying units, an experienced contractor should check the type of wall construction, the depth of the cavity, the distance between the studs, and how close the units are to water supply lines for a Waterproof TV in the Bathroom. For hidden installs in tiled wet rooms, the back-box opening needs to be big enough to hold the unit body and have at least 20 mm of air space on three sides to keep the temperature even. Custom structural measurements are possible with WiseMirror, so procurement teams can define exact cutout sizes that match their architectural plans without affecting the perimeter of the waterproof seal.
Electrical Compliance and Power Supply
In most places, bathroom electrical zones are controlled. In the US, NEC Article 410 says where lights and other devices can go in relation to the edges of the shower and tub. When it comes to wet-zone electronics, a low-voltage DC supply (12V or 24V) is much better than a mains-voltage connection because it greatly lowers the risk of shock. Waterproof cable glands must be used to seal all conduit openings into the back box. Before setting up the display unit and sealing the edges with sanitary-grade silicone, all wet-zone wiring should be done by a licensed electrician.
Sealing, Mounting, and Signal Connectivity
Once the back-box is ready and the wiring is in place, the custom smart mirror display unit mounts flush using the hardware that came with it. A neutral-cure silicone that is approved for wet rooms must be used to fill the gap around the edge between the unit ring and the tile face. When working on hotel projects, signals are usually sent through in-wall HDMI 2.0 or Cat6 cables that are linked to the building's IPTV or COAX broadcast system. WiseMirror units have a digital-analog combined signal receiving system that works with PAL, AM, and NTSC formats. This meets the needs of signal infrastructure for hotel companies in North America and around the world.
Selecting the Right Waterproof TV for Bathroom Projects
Key Specification Criteria for Commercial Procurement
When buying waterproof bathroom displays for hotel or real estate projects, purchasing managers should look at five main factors: the IP rating, the brightness of the display, the freedom of the system, the sound quality, and any certificates that come with it. A screen with an IP66 housing, built-in waterproof audio speakers, the ability to work with both Android and TV systems, and full foreign certifications meets most project needs without the need for expensive changes after delivery.
The screens in WiseMirror Intelligent's Waterproof TV in the Bathroom Products range from 15.6" to 55", and they work with TV systems, Android systems, or a combination of TV and Android systems. Each product comes with an infrared remote control that is waterproof and rated IP68. The Android layer gives you access to YouTube, Netflix, and third-party app downloads, which hotel owners need more and more to meet guests' expectations for streaming in their rooms. Here are the main business benefits of this line of products:

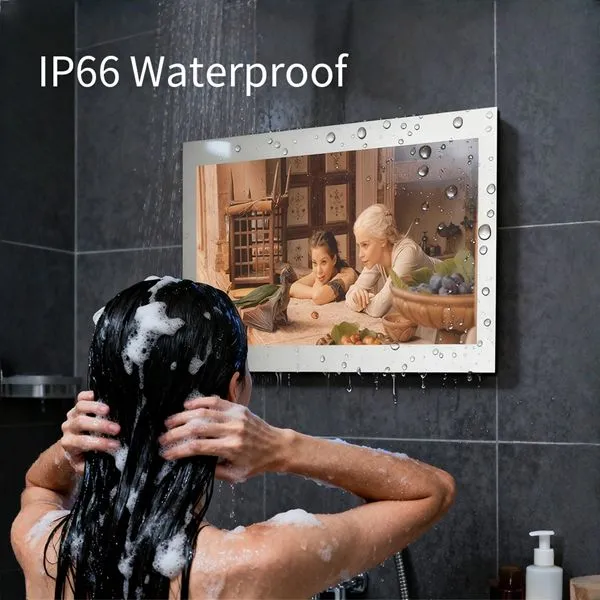

- IP66 waterproof housing with anti-oxidation, anti-corrosion coated mirror surface—rated for direct shower environments and coastal high-humidity sites.
- Built-in waterproof stereo speakers with noise-reduction clarity, eliminating the cost of separate ceiling speaker integration in most bathroom layouts.

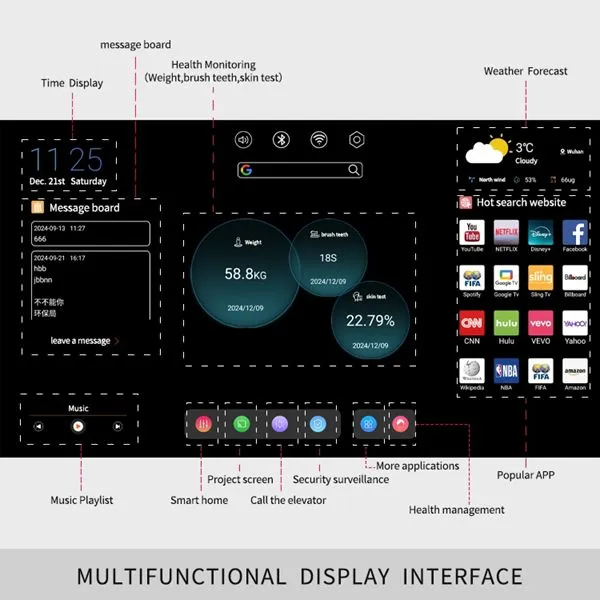

- TV+Android dual system supporting IPTV, COAX, Wi-Fi, Bluetooth, HDMI, and USB—covering every signal topology used in contemporary hotel and residential projects.
-
- Custom structural dimensions available for fit-out contractors who need exact cutout specifications to match architectural drawings.
- 30-day lead time for orders of 100+ units, with CE, RoHS, UL, and FCC certification documentation provided for customs and regulatory compliance.
These benefits directly address the buying problems that hotel project managers and fit-out workers face most often: non-standard sizes, signal incompatibility after installation, and cost overruns for audio integration.
OEM and Bulk Order Considerations
OEM configuration is a good choice for developers who are buying for multiple properties or for fit-out companies that are in charge of frequent hotel renovations. WiseMirror Intelligent lets you make your own UI branding, map channels to your hotel, and have the Android launcher settings set up automatically when you buy it. The supply chain is set up so that large orders have 15% to 20% lower unit costs than retail purchases. Standardized installation kits also cut down on the time needed to install each unit on-site.
Certification and Compliance for the US Market
Contractors working on hotel or business projects in the US should make sure that the display they are using is certified by both UL and FCC. AHJ (Authority Having Jurisdiction) inspections often need electrical devices in wet areas to be listed with UL. Any device with a Wi-Fi or Bluetooth radio must be certified by the FCC. WiseMirror units come with all the papers needed for certification, which makes both the inspection process and the paperwork needed to finish the job easier.
Maintaining and Troubleshooting Recessed Waterproof TVs
Cleaning and Preventive Maintenance
The front of the glass should be cleaned with a soft microfiber cloth and a glass cleaner that doesn't have any acids in it. Over time, abrasive pads and cleaners with solvents break down silicone seals. This is the most common way that moisture gets into the system that has been reported in the field. As part of the yearly preventative maintenance plan, contractors should check the outer seal once a year and reapply neutral-cure silicone where they see any cracks or shrinkage.
Diagnosing Moisture Ingress and Fogging
If the anti-fog heating element in a Waterproof TV in the Bathroom breaks, condensation will form on the inside of the glass within minutes of getting out of the shower. This means that either the heating circuit's power supply is broken or the seal is broken. To fix the problem, check that the heating element is getting DC power, look for gaps in the silicone around the edges, and call the manufacturer for a warranty check if the unit is still under warranty. WiseMirror offers replacement parts and technical help after the sale to keep projects running as smoothly as possible.
Connectivity and Remote Control Issues
People often complain that their IR remote signals get cut off in recessed installations where the depth of the bezels blocks part of the IR receiver window. Most problems can be fixed by moving the unit slightly or using the WiseMirror IP68-rated waterproof remote control, which can send direct infrared signals even when it's wet. RS232 and Wi-Fi control interfaces can be set up at the factory as options for homes that use smart-home control systems.
Business and Procurement Insights for Contractors
Cost Structure and Channel Selection
When you buy from a certified maker like WiseMirror Intelligent, you can be sure of the prices than when you buy from a bunch of different stores. This is especially true for projects that need 20 or more units. When procurement teams work directly with manufacturers, they can access project-specific technical paperwork, review pre-production samples, and do factory audits. All of these things lower the risk of procurement for big hotel or real estate deals.
Building Client Trust Through Project Documentation
Most of the time, contractors who give fully certified bathroom audiovisual installs with warranty certificates, as-built drawings, and certification paperwork say that they keep clients longer and get more referrals. Including a structured maintenance schedule in the project handover package makes your company look like a long-term service partner instead of a one-time supplier. This is especially helpful for hotel owners who are in charge of multiple properties.
Conclusion
Specifying a recessed waterproof TV for a bathroom in a hotel, residential, or commercial wellness project requires careful attention to IP ratings, electrical compliance, installation technique, and long-term maintenance planning. When combined with anti-fog technology, approved electrical parts, and flexible signal integration, units with an IP66 rating or higher always meet the performance and durability needs of B2B projects. When you choose a manufacturer that offers custom sizes, logistics for bulk orders, and technical support after the sale, you lower the risk of the project and protect your company's reputation with each installation.
FAQ
Can a waterproof bathroom TV be installed directly inside a shower enclosure?
Yes, provided the unit carries an IP65 rating or higher and the installation follows the manufacturer-specified waterproof mounting kit and silicone sealing procedure. WiseMirror units rated IP66 are suitable for direct shower zone installation.
How does the screen stay fog-free during hot showers?
An internal heating plate behind the glass activates on power-up, maintaining the glass surface temperature above the dew point. This prevents condensation from forming on the inner or outer glass surface, typically within two to three minutes of activation.
Is the remote control waterproof?
WiseMirror supplies an IP68-rated infrared waterproof remote control as standard. It withstands full water exposure, making it safe for use in wet bathroom environments.
What signal formats are supported?
The units support a digital-analog integrated receiving solution covering PAL, AM, and NTSC formats, which covers signal infrastructure requirements across North American and international hotel projects.
Should installation be completed by a licensed contractor?
Yes. Wet-zone electrical work must comply with local codes such as NEC Article 410 in the US. A licensed electrician should complete all wiring before the display is mounted and sealed.
Ready to Specify a Waterproof TV in the Bathroom for Your Next Project?
WiseMirror Intelligent brings over 18 years of engineering experience to every hotel, real estate, and commercial fit-out project.
As a direct waterproof TV in the bathroom manufacturer, we offer IP66-certified recessed displays with custom dimensions, dual Android/TV systems, full US and EU certifications, and 30-day lead times for bulk orders. Contact our project team at info@wisemirror-int.com or visit wisemirror-int.com to request specifications, samples, or a project-specific quotation.
